Update Deployed Database Applications

Lab Description

This solution lab demonstrates maintaining a deployed database application. A database application is an application where a database and client software is installed at multiple deployed “sites”. Tight coupling between the client software and database requires simultaneous updating of the site database and client installs. The downloadable example application demonstrates an automated update process of a deployed database application.

Introduction

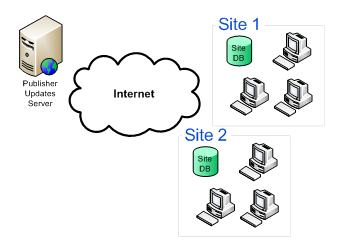

Deployed Database Application

The downloadable example includes a sample Contacts application. As the Contacts application is improved and new application versions are released, deployed sites can be maintained by creating and publishing a server update. Application owners at each site can initiate an update process that will check the public location for a published server update. If an update exists, the site owner can choose to apply the update. Server updates modify the site database, and places a client update in a local client update folder. As each site client starts the application, new client updates are automatically discovered and applied from the local client update folder.

The Example Application

The example consists of a single SQL Server database and the client Contacts .Net application.

The Updating Scheme

To implement an update solution, the Contacts application is extended to provide a feature through the application user interface that allows the application administrator to check for server updates from a public web server over the internet, where server updates are published. This feature is exposed through a menu option.

Updating the Database

Server updates maintain the database, and also place new client update packages on the local network. To support the updating scheme, a DbVersion table is added to the database. In addition to performing the database maintenance necessary to support the new application version, each database update will update the version stamp and place any new client application update packages into the local client update folder.

Database Security

A privileged connection is required to perform database maintenance during an update. The method used to provide the update process a privileged connection will vary based on the security environment. In this example application, a privileged connection string is passed into the update from the host Contacts application as the update is applied.

The Server Update

The following actions are performed during a server update. This update process is defined in the ContactsServer.aup AppLife Update project file.

  1. Create a db Connection
  2. Backup the database
  3. Create a SQL Transaction
  4. Execute the update.sql maintenance script
  5. Add the client update to the client update folder
  6. Commit the transaction
  7. Close the db Connection

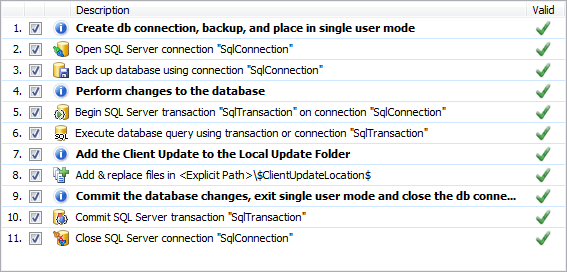

The Server Update Action List

Step 1 – Create a db connection. The first step in the update reads the connection string that was passed from the host application and creates a SQL Database connection. As this connection is opened, the database is transitioned into Single User Mode.

Step 2 – Backup the database. This is an optional step that should be done if any non-transactable maintenance is performed on the database. If the update fails, all of the work performed will be rolled back by the SQL transaction. This backup is made as a safety precaution to prevent any possibility of data loss.

Step 3 – Create a SQL Transaction that is used by the actions that perform the database work. In the event of an update failure, the SQL transaction is rolled back in the Update Engine Rollback stage.

Step 4 – Execute the update.sql maintenance script. This action executes the update.sql file. While preparing for an update, all database changes are scripted and placed into the update.sql file. When the server update package is built, the update.sql file is packaged into the update.

Step 5 – Place the client application update on the local network. The client update is built before the server update, and consists of a Director.Xml file and an update package file (x.x.x.x.zip). These two files are added to the Local Client Updates folder. This location is passed into the update engine from the host application using Shared Properties.

Step 6 – Commit the transaction. The transaction created in step 3 is committed.

Step 7 – Close the SQL Connection. The database is placed back in multi-user mode. Clients can now re-connect to the database.

Targeting specific previous versions When the server update is built, the appropriate previous version(s) are set as the versions to update. The previous versions that the update targets is determined by the database version that the update.sql script expects.

The Client Update

The Client Update replaces the Contacts.exe application assembly.

The client application checks for updates immediately upon start up, and if an update is present, the client is updated without user intervention. This keeps all of the locally installed clients synchronized with the database version. Additional update checks can be implemented where appriopriate within the client application.

Conclusion

AppLife Update provides the infrastructure to quickly implement a reliable deployed application maintenance solution for deployed database applications. The flexibility of the AppLife Update Controller, as well as the transacted Update Engine provides all of the features necessary to maintain even the most complicated deployed solutions, saving your organization time and money with each new release of your software.

For answers to questions about this example, please contact Kinetic Jump tech support. techsupport@kineticjump.com
