Msi + Update Application Deployment Solution

Lab Description

Combining the installation features of the Windows Installer (msi) with the updating features of AppLife Update provides software publishers with a sound application deployment and maintenance strategy for Windows client and server software solutions.

Example Solution

This lab uses a Visual Studio Setup & Deployment project to deploy an example Windows forms application and AppLife Update to build, discover, download and apply updates. At the end of the lab, we will be able to create installation packages for new application versions and publish updates that deployed clients use to automatically migrate existing installations to new versions.

Creating the Installer

The Visual Studio Setup & Deployment project is a very powerful and straightforward mechanism to create a Windows Installer package for applications.

Note: The Setup & Deployment project was removed from Visual Studio 2012 and replaced with InstallShield Limited Edition. Setup & Deployment can continue to be used in Visual Studio 2010. We suggest considering the WiX Toolset for creating your MSI.

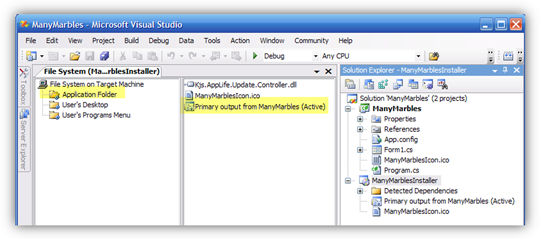

Using the File System view we can add the primary output of our example application project to the Application Folder. When we add the output of the example application, all referenced assemblies will be included automatically.
Windows Installer Configuration We also include a shortcut to the user’s start menu by selecting User’s Programs Menu and adding a shortcut to the primary executable in the Application Folder. Adding an application shortcut

Create Non-Advertised Shortcuts: Because the AppLife Update maintenance process will replace installed files, the shortcuts created by the installer should be non-advertised. This will prevent the Windows Installer from attempting to automatically fix the installation with the originally installed version.

Checking for updates

With an installer ready to go, we want our example application to be able to discover, download, and apply updates that will be published as changes are made to the application. For this example, we want to check for updates without requiring user action, but do want to require user confirmation before proceeding with an update. To accomplish this, we initiate an asynchronous (background) update check when the application launches. If an update is discovered, we ask the user for confirmation. If no updates are available, the user is not interupted.

The AppLife Update Controller is very flexible. Deciding when to check for updates, when to download, when to interrupt the user, and when to apply an update is entirely up to the integrator.

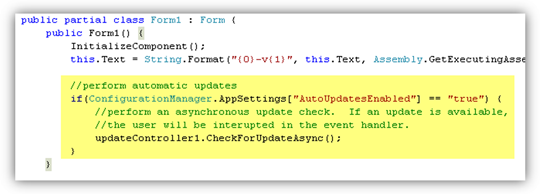

Integrating AppLife Update is simple. We include a reference to the Update Controller assembly and then place an Update Controller control onto the main form of our application. Then we create an AppLife Update project file (aup) and synchronize the project with the Update Controller in our application. Follow the instructions displayed in the AppLife Update new project wizard. With the update controller in place, we check for updates during the initialization of the main form in the application. .Net Updater API

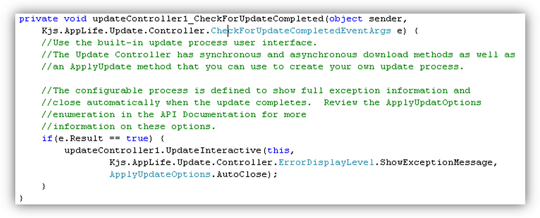

Because we are using the asynchronous event, we subscribe to the CheckForUpdateCompleted event and continue the process within the event handler. Using the application updater control

Versioning

For update versioning, we are using the assembly version of the example application. The Update Controller provides functionality for synchronizing the update version to the assembly version. This feature is enabled by setting the UseHostAssemblyVersion property of the Update Controller to true.

Building Updates

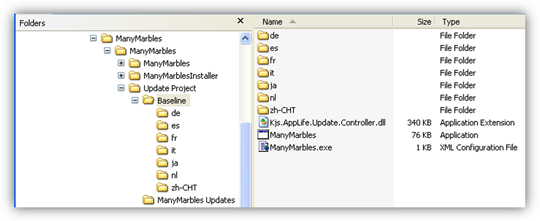

With our example application ready for updates, we can create and publish updates as the application is extended. Updates for this example application will primarily involve replacing assemblies, though in the future we may need to do more. For assembly replacement, we are using the Add & Replace files by comparison action. This action compares a baseline folder with a current folder to determine which files in the current folder is new or has been updated. The baseline folder should represent what the application directory includes for a previous version of the application. We have created a baseline folder for version 1.0.0.0.

Building an application update package

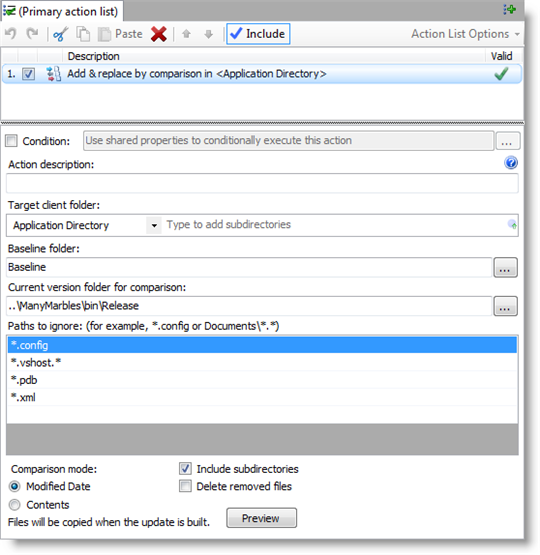

For the current folder, we are using the Visual Studio build folder (bin). This folder will have files that we don’t want to include such as pdb files, config files, and code comment files. We can exclude these files with the action filter property.

Comparing updater files

With this action set up, we are ready to build and publish updates whenever we build the example solution. The updates we build for this application will target all previously released versions.

Publishing an Update

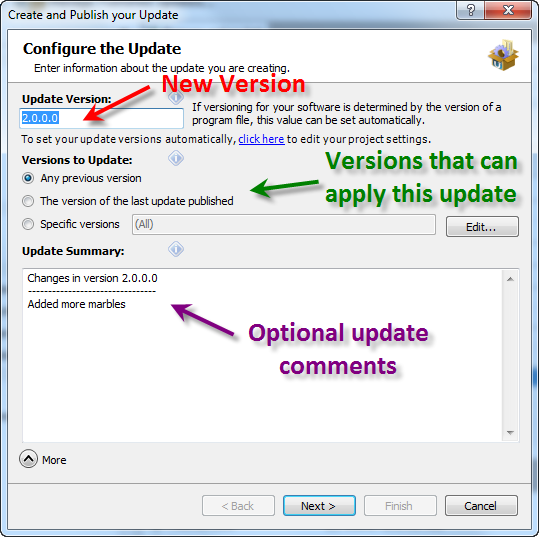

With version 2.0 ready for deployment, we build the Installer project to create a new installer. With the new version built, we can publish an update using AppLife Update. We set the new version number, what previous versions can apply this update, and include any update comments.

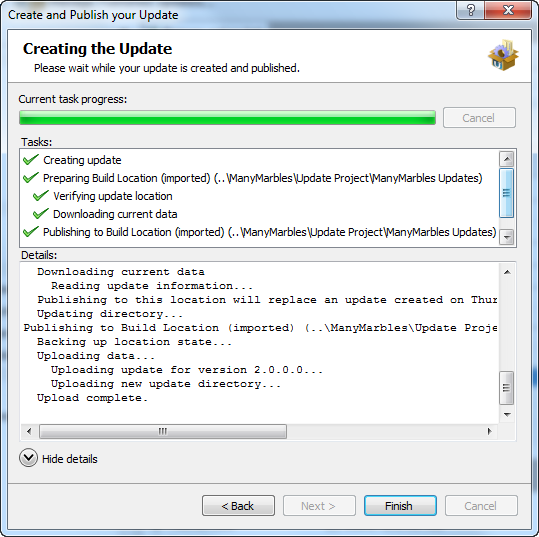

Publishing application updates Update control

With the update published, previous versions can discover, download and apply the update to version 2.0.
