Deployment with AppLife Update

Lab Description

This solution lab demonstrates how to perform an initial application deployment using AppLife Update.

Introduction

The AppLife Update solution is designed to provide a solution for maintaining deployed .Net applications. The vast array of possible .Net application environments demands a great deal of flexibility in any updating and maintenance solution. AppLife Update meets that demand. Using this flexibility, AppLife Update can also provide a solution for initial application deployment, offering a compelling alternative to the Windows Installer and ClickOnce for some application scenarios.

The Installer Application

The concept is to create a simple “installer” application that will discover and apply an update using AppLife Update. During this initial update, the AppLife Update engine performs the installation of the primary application.

The download for this solution lab includes a Hello World example application and corresponding installer. This installer application uses the AppLife Update Controller to find and apply the “installer” update.

The installation utility

The installer uses the CheckForUpdateAsync and DownloadUpdateAsync update controller methods to find and download the “installer” update.

Setting the Install Directory

The physical location on the deployed client to install the primary application is passed into the “installer” update as the ApplyUpdate method is called. The update can install anywhere the current user has permissions to write to. The Hello World example assumes only limited permissions, and installs into the current users local AppData folder. The install utility could be extended to allow the end-user the ability to pick the install location.

As the update is applied, the NoRestart and AutoClose options are used so that the update does not attempt to restart the installer application when the “installer” update is finished. In the example application, the AppLife Update engine user interface is displayed during the install. You could choose to customize the user interface using the IUpdateUI interface features, or choose to not show the update window at all by using the NoUpdateWindow option.

The install utility includes a Start application after install option. This value is also passed into the update. The update will conditionally launch the primary application at the end of the update, based on this checkbox value.

The Install

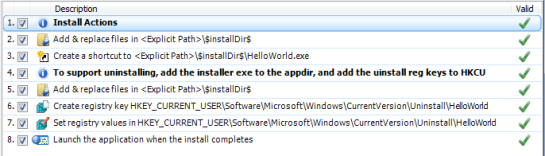

The install action list

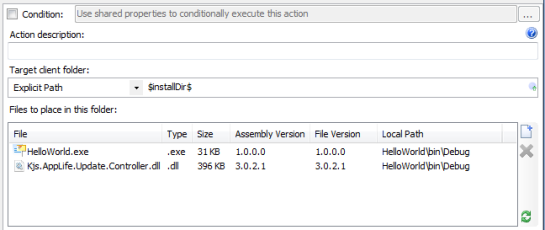

The “install” update uses an Add & Replace files action to place the primary application assemblies in the install directory. This directory location was passed into the update and is accessed using the designated Shared Property.

Installing application assemblies

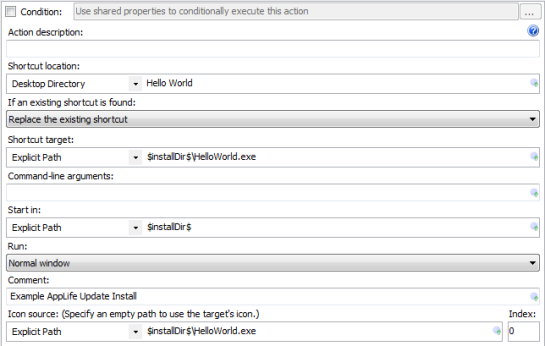

The Create file shortcut action is used to place a shortcut on the users desktop to launch the application. A shortcut could also be placed in the users Start Menu directory as well.

Installing application assemblies
Uninstalling the Application

The install utility also supports uninstalling the application using the same concept as installing. If the install utility is launched with a /uninstall command line switch, the utility will use a different update location and look for an “uninstall” update that will remove the application from the user’s computer. The “install” update places registry keys that will add an entry for the application in the Windows installed applications list. The user can uninstall the application from the Windows Control Panel.

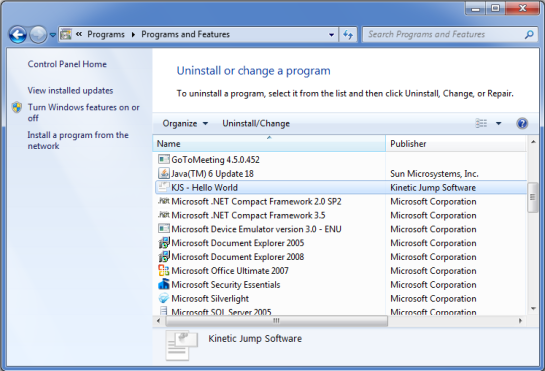

Windows Application List
Web-Based Deployment

For easy deployment, the example download provides a download aspx page. The page identifies the highest available “install” update and provides a link to download the installer utility.

Windows Application List

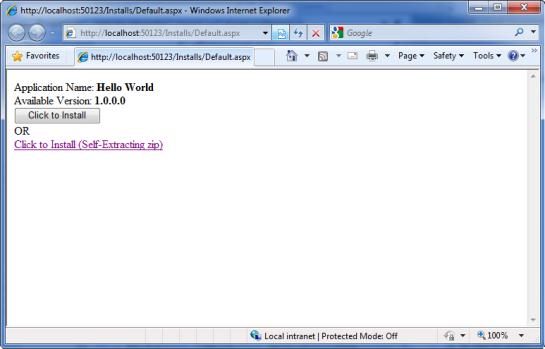

Hello World example application install page

.Net Framework Dependency

The application installer utility is a .Net application and is therefore dependent on the .Net Framework. The application install page looks at the http headers from the client and determines if the .Net Framework is installed or not. If the .Net Framework is not present, the install links are disabled and a link to get the Microsoft .Net Framework is displayed.

Why the Self Extracting zip Option?

When Internet Explorer downloads a .Net executable from the local Intranet zone or the Trusted Sites zone, it will launch the executable in a security sandbox using IEExec.exe, a Microsoft shell application intended to provide .Net Smart Client deployment functionality often referred to as no touch deployment or href exe. Executables originating from the Internet zone cannot use IEExec.exe. Ironically, we don’t want IEExec.exe to launch the installer executable. This is because the AppLife Update controller uses IPC Remoting and requires a higher trust level than IEExec.exe allows, without a customized client code access security configuration. So we don’t want the installer exe to be launched with IEExec.exe regardless of the originating zone. The desired behavior is to download the file to the remote system and launch the application as its own process. Unfortunately, preventing this in Internet Explorer without asking the user to save the file locally using the right-click context menu requires a work around. One method is to wrap the .Net executable in a native process, and a self-extracting zip serves this purpose. Another method is to change the http response type when the file is requested using server-side code. This method is employed in the example aspx page. Other browsers do not exhibit this behavior.

Conclusion

The flexibility offered by AppLife Update provides a deployment alternative to Windows Installer and ClickOnce. For some application scenarios, the transparency, flexibility, and capability you get with a deployment strategy centered on AppLife Update can be compelling. With AppLife Update, you gain the ability to perform any action necessary during an install/update, as well as an API that allows you to easily design an update process that matches your application looks and behaviors.

For answers to questions about this example, please contact Kinetic Jump tech support. techsupport@kineticjump.com
